Pressure-bearable Systems suited for Potable Water Reaches temperatures of 90° – 95°C

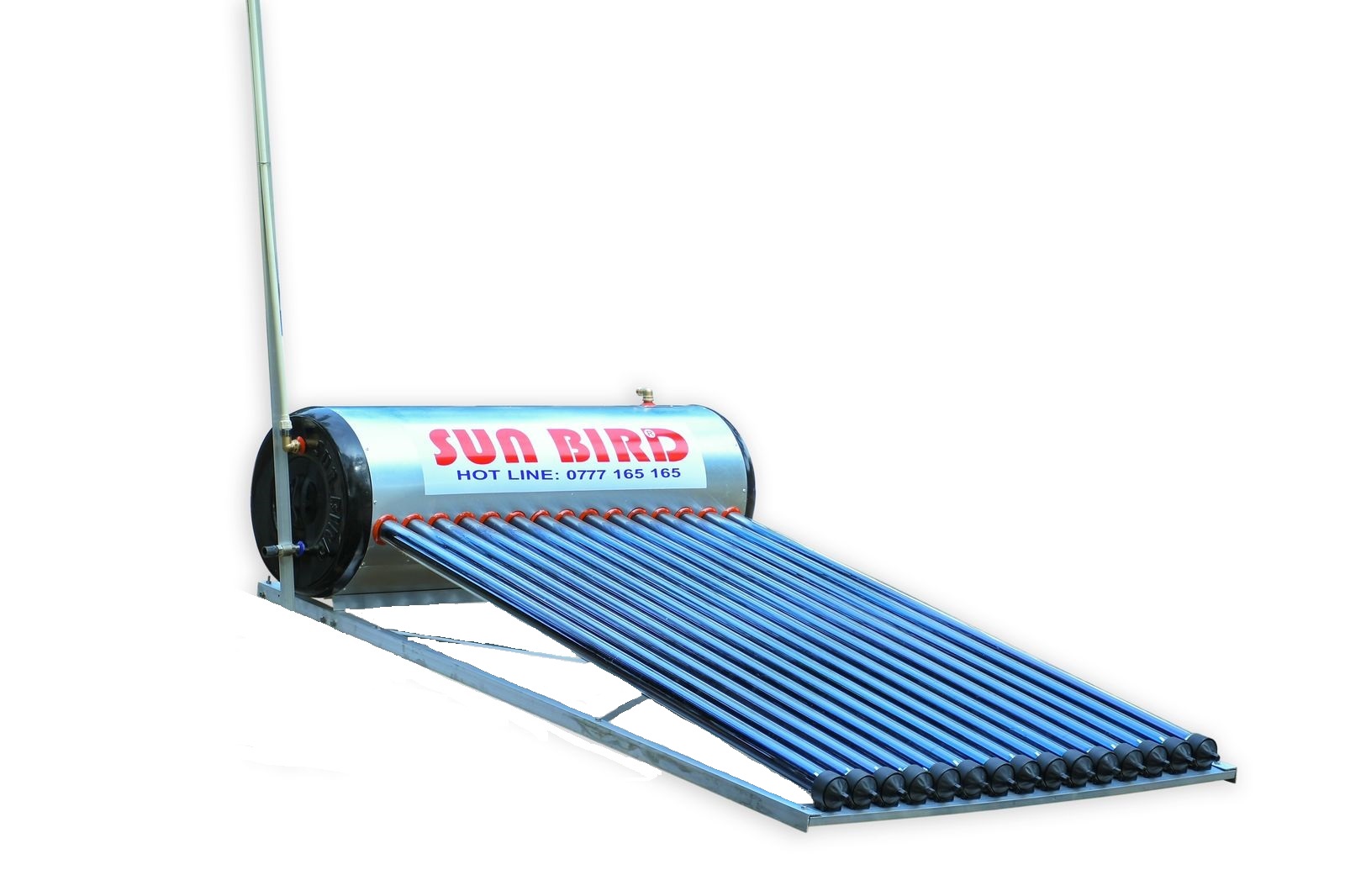

VTN Series
The VTN Series is an open-circuit solar water heater that uses the
highly efficient Evacuated Tube technology and performs equally well in
areas of low and areas of high solar energy (such as the central
highlands). The system is suited to an application where water lines
have low-pressure (< 0. 5bars). They can be installed on most roof/slabs
and is a reliable product designed to last a lifetime
The
evacuated tubes capture a high degree of solar irradiation by the
selective coated inner surface contained within a glass vacuum,
heating the water directly in the tubes. By the principle known as
the Solar-siphon Effect the heated water is transferred to the
storage tank ready for your use – hot water free from the sun
- Standard Vacuum Tubes
- Cannot use with a pressure booster pump
- Operating Pressure: 0 ~ 0.05Mpa (<0.5bar)< /li>
- Suitable for areas with low sunshine
- No maintenance required
- Winner of Presidential Award in Energy
- Delivery pressure is determined by the unit head
- Overhead tank should be < 2m of unit
- Stainless Steel anchoring brackets for roof/slab
- Economical Solution
- Stainless Steel – SUS304 (1mm)
- Long-lasting aluminum outer body
- Electrical Backup (3kw / 1.5kw)
- Machine-injected high-density Polyurethane foam insulation (50mm)
- UV stabilized fiberglass side covers
- Sacrificial Anode – User-replaceable
- Water Input Control valve
- Tube glass – Borosilicate
- Standard Vacuum tube (58x1800mm)
- All aluminum frame
- Vent or Assistant Tank
- Electrical thermostat controller (42° ~ 55°C)
- Sacrificial Anode
- Auto control valve for delivery temperature
- Remote electronic controller (temperature/ pressure) with display
Selection Guide
| Models | Capacity/Usage | Tank Dimensions | Gross Weight | Maximum Out Tem | Dry Weight | Price |
|---|---|---|---|---|---|---|
| VTN80 | 80 Ltrs / 2 persons | 0.76m x 0.51m | 112kg | 90 C - 95 C | 32kg | Rs 110,000/= |
| VTN100 | 100 Ltrs / 3 persons | 1.1m x 0.51m | 136kg | 90 C - 95 C | 36kg | Rs 120,000/= |
| VTN150 | 150 Ltrs / 4 persons | 1.37m x 0.51m | 213kg | 90 C - 95 C | 53kg | Rs 147,000/= |
| VTN300 | 300 Ltrs / 8 persons | 2.6m x 0.51m | 395kg | 90 C - 95 C | 95kg | Rs 240,000/= |
SUNBIRD reserves the right to make any amendments or additions to the information herein, in keeping with our policy on continued product research and development.
