CSP - Split Type Systems
CSP Series
Split Type Systems
Pressure-bearable Systems suited for Hard Water Reaches temperatures of 55° – 65°C
Genuine
Products with Genuine Warranty
CSP Series

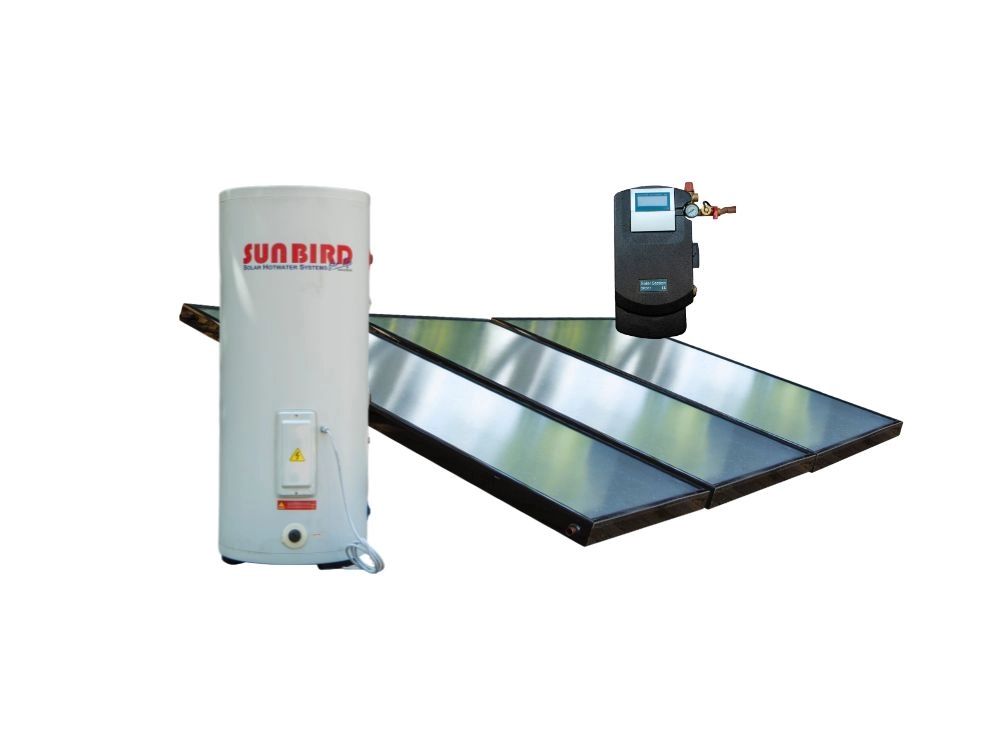

Split-type solar hot water system suitable for hard water and high-pressure installations.
System
- Split Type Pressure-Bearable Solar Water Heating System
- Designed for hard water conditions
- Storage tank installed inside the house (concealed installation), Solar collector mounted on roof or slab
- Heat transfer via circulation pump between collector and storage tank
- Panel installation distance up to 5 m from storage tank
- Suitable for modern clean roofline installations
- Operating Pressure: 0 – 0.6 MPa (6 bar)
- Suitable for areas with good sunshine
- Delivery pressure equals input pressure
Hot Water Storage Tank
- Ceramkoat Inner Tank specially designed for hard water / non-potable water
- Ceramic coated mild-steel tank
- Long-lasting aluminium outer body
- Electrical backup (3 kW / 1.5 kW)
- Machine-injected high-density polyurethane insulation (50 mm)
- UV-stabilized fiberglass side covers
- Sacrificial anode – user replaceable
- Water input control valve
Solar Collector
- High-efficiency Flat Plate Collector
- Copper risers for efficient heat transfer
- Machine-welded aluminium absorber fins
- Panel housing aluminium frame with GI backing
- Collector glass – tempered safety glass (3 mm – 5 mm)
- Slim panel design (~65 mm thickness)
Safety Components
- Anti-vacuum protection assembly
- Electrical thermostat controller (42 – 55 °C)
- Non-return valve at cold water inlet
- Auto air relief valve
- Automatic pressure relief valve
- Sediment removal flushing valve
Optional Components (Purchased Separately)
- Black-chrome plated collector panels
- Automatic temperature control valve
- Remote electronic controller (temperature / pressure display)
- Premium flat-plate collector (black-chrome + 5 mm tempered glass)
Selection Guide
| Models | Capacity/Usage | Tank Dimensions | Gross Weight | Maximum Out Temp | Dry Weight | Price |
|---|---|---|---|---|---|---|

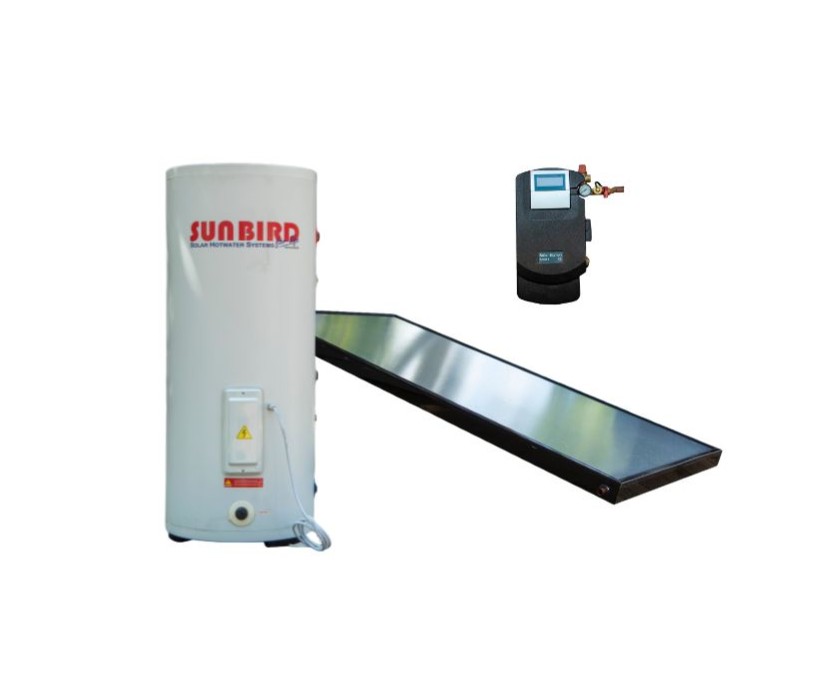

| CSP 150 | 150 Ltrs / 4 persons | Custom | Contact for details | Optimized | Contact for details | Contact for Quote |
| CSP 200 | 200 Ltrs / 6 persons | Custom | Contact for details | Optimized | Contact for details | Contact for Quote |

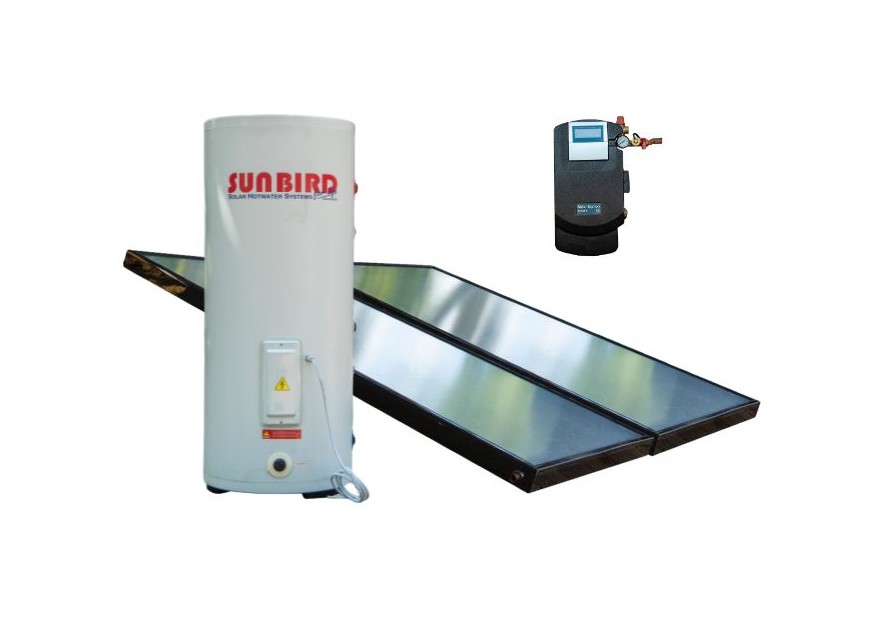

| CSP 300 | 300 Ltrs / 8 persons | Custom | Contact for details | Optimized | Contact for details | Contact for Quote |
SUNBIRD reserves the right to make any amendments or additions to the information herein, in keeping with our policy on continued product research and development.
